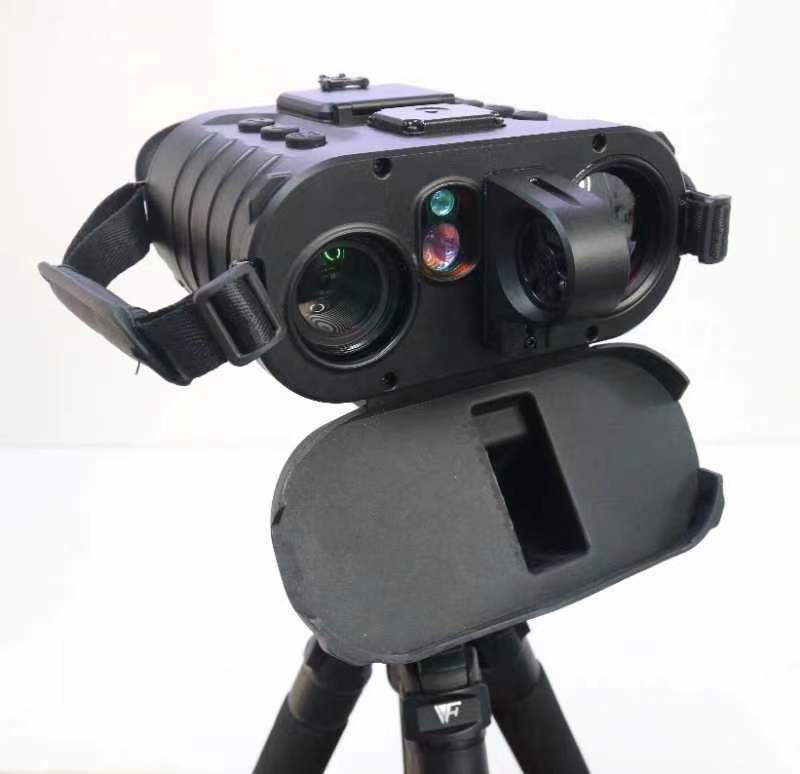

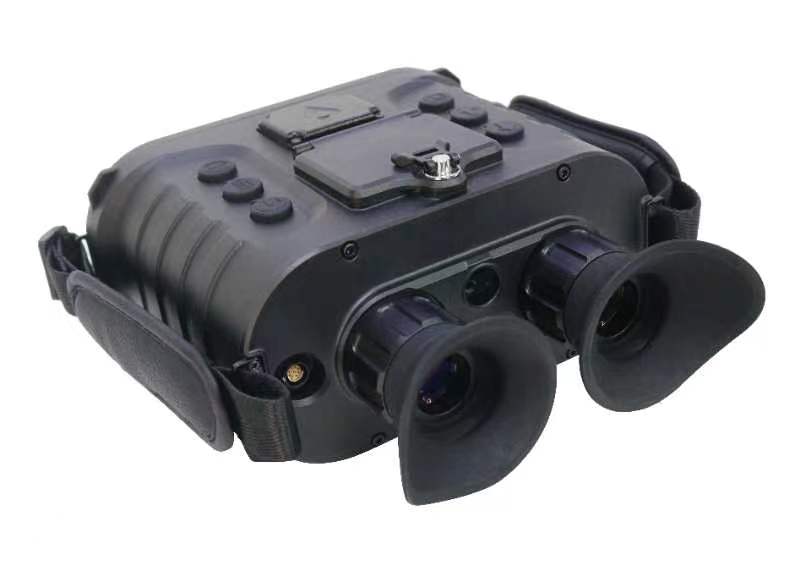

TomB-S6 Ballistic Caculation Thermal Binocular with Laser Pointer

Thermal

Spectrum

8μm~14μm

Sensor

VOX

Resolution

640*512

Pitch

12μm

NETD

40mk

Focus length

50mm f1.0

FOV

8.7°×7.0°

Magnification

3.2×

Low light

spectrum

0.4μm~1.1μm

Sensor

cmos

Resolution

1920*1080

Dimension

1/1.8

Magnification

4.7×

FOV

6.2°*4.6°

Focus

Motorized

Day-night

White-black/color

Defog

Ration≥1.5

Meteorology

Temp-measuring

-43℃～60℃

Accuracy

±1℃

Range

0%RH～100%RH

Humidity accuracy

±2%RH（15%RH～90%RH）

±4%RH（others）

Wind speed

-25m/s～+25m/s

Wind accuracy

±1m/s（range 0m/s～10m/s）

±2m/s（others）

Barometric

200hPa～1100hPa

Barometric accuracy

±1hPa

Altitude accuracy

150meters

LRF

Wavelength

905nm

Mini-range

30M

Max-range

2000M（  Military green target ）

Accuracy

±2 M

Accurate measurement rate

98%

Repeated frequency

1~5hz

Unit

Meter；Yard；Feet

Photo on range

yes，0-5 seconds Countdown to take pictures，can be shut down

Location

Mode

GPS/Beidou/glonass

Self locating Accuracy

Horizontal 5m（CEP），Elevation 10m（PE）

Target locating Accuracy

Horizontal 10m，Elevation 20m

Coordinate

Geodetic coordinates

/Gaussian coordinates/UTM Mercator/Mgrs Grid

Location performance

Azimuth measurement range

0°～360°

Azimuth directional accuracy

0.5°（RMS，Inclination 0°）

 Elevation range

-90°～90°

 Elevation range accuracy

≤0.3°（RMS，@-81°～81°）

Horizontal angle

-180°～180°

 Horizontal angle accuracy

≤0.2°(RMS，@-65°～65°)

Compass calibration

Yes

Unit of the angle

degree，mil，Percentiles

Storage and preview

record

IR/low light/visible light/fusion下

Capacity

128G

Review

View /Delete

Export

USB/wifi export

Ballistic calculation

Input

support

Storage quantity

10 groups

Windage accuracy

0.05MIL

Elevation accuracy

0.05MIL

Display

Type

OLED

Resolution

1920*1080

Inch

0.71 inch

Exit pupil

7mm

Dioptre adjustment

-5～+5

Reticule

6 types

Reticle color

black/white/red/blue

Thermal color

White hot/black hot/rainbow/Iron red/lava/sky /Medium gray/ Gray red/Purple orange/Ice fire/Bluish red/Gradient red/Gradient green/Gradient blue

Digital zoom

1.0×～4.0× ，0.05×

Close face- Light leakage-proof

Away-face, screen light off

Cable

Analogue video interface

CVBS (pal )

Data export interface

USB

External power interface

12V（±3V）

External commander interface

RS232

WiFi

Image transfer and control

Continues working

Working hours

≥5hours（18650*4，@20℃）

Battery installation

Any way

Battery charging

2.5hours

External power

≥24hours

Physical

Dimension

210 mm *178 mm *98mm

Weight

1.67kg

Environment

Environment

IP67

Working temp

-40℃～60℃

Storage temp

-45℃～70℃（0℃～40℃ best range）

Vibration in transportation

 3 hours

Rain guard

Under 2mm/min raining ，60min，it can work normally. After the test, it can still work normally.

Humidity

 Test it  in +30℃～+60℃, humidity 95%, 24h as a period. after 3 weeks, it can still work normally.
