Thermal Binocular

The Multifunctional Thermal Imaging Binocular is used for day and night reconnaissance and target location.

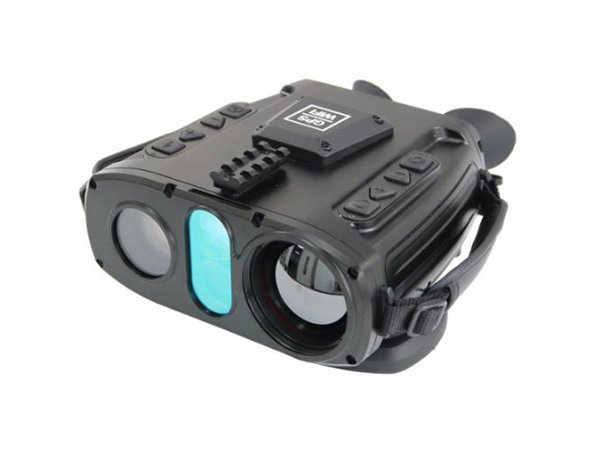

NTG5000 Muiti Function Thermal and CMOS Camera with Positioning and Ranging System

It uses the channel of infrared and the channel of visible light (CMOS) to achieve clearimage in day time and night time. Or it can use the infrared channel to track thetarget in day and night. Therefore, it is the ideal device for law enforcement,anti-drug, anti-terrorism,border defense, sea guard,etc
Follow:
Description


Features:


1.Switch between CMOS and thermal;

2. GPS to show Shown the coordinates of the target and user;

3. E-compass for direction;  36X optical, 32X digital;

4. Anti-fog : 4 settings;   Stabilization in CMOS:

5. 3 settings of DDE (Image intensification) ;

6. OLED display with resolution 1280×1024;

7. Built in  LRF up to 6KM,10KM,20Km;

8. Red letters on OLED;

9. Displayed or hidden  data on the screen;

10.Built-in scale for measuring horizontal and vertical angle;

11. Wide Dynamic Range;Digital image Stablizer;

12. Digital Noise Reduction;Intelligent motion detection;












Specification:


IR

Sensor

VOX

Resolution

640×512/ 1280×1024

Pitch

12μm

Respond spectrum

7.5-14μm

Focus length

f=65mmF#0.9

FOV

10.36°×8.3°

Space resolution

0.26mrad

Focus

Motorized

N E T D

≤40mK@30℃

Frame rate

50Hz

Image intensification

DDE

Display

Double OLED, with size of 0.61 inch

Visible light

CMOS

1/2" Sony Exmor CMOS sensor



Total Pixels

1952(H) x 1113(V) = 2.17M pixels

Resolution

Digital: 1080p 60(50)/30(25)fps, 1080i 60(50)fps, 720p 60(50)/30(25)fps

Analog: HD-Analog (1080p 30(25)fps, 1080i 60(50)fps, 720p 60(50)/30(25)fps), CVBS (700TVL)

Angle of View (D, H, V)

Wide

63.31°

56.5°

33.63°

Narrow

2.44°

2.12°

1.19°

Focus length

f = 6.0mm ~ 216.0mm

Magnification

Optical x36, Digital x32 Zoom

Focus

Automatic / Motorized

Shutter

1/100-1/10000 second

HD

Color 650TVLwhite and black 700TVL

Low light

Color 0.04Lux(50IRE@F1.5)

                        white and black 0.004Lux (50IRE@F1.5)

S/N

≥50dB

Dynamic detection

support

   Storage

SD card

SD card, 32G

Video

AVI5 hours video

       Power and interface

Battery

Lithium batteryrechargeable

Battery life

5 hours

Charger

Smart charger

External power

DC 9-12V

Watt

≤5W

Auto sleep

OLED, Auto sleep

Data/ protocol

USB RS 232 BNC,(VISCA, PELCO-D, PELCO-P

          Environment

Working temperature

-20℃ - +50℃

Storage temperature

-40℃ - +70℃

Humidity

Under 10%-95%, no condensing

Protection

IP 66

             Physical

Dimension

≤210mm x 185mm x 100mm

Weight

≤2.37kgincluding the battery

IR

Identification800m   Detection2500m

CMOS

Identification1000m   Detection3000m

Laser range finder

905nm---2km (standard)

1535nm---6km/8km/10km optional

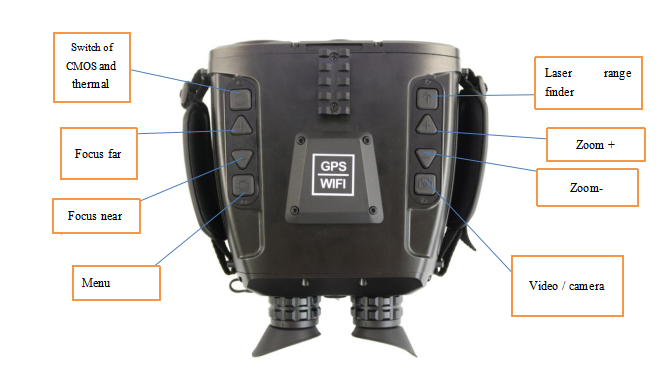

Buttons:


Assembly:
