Features:
1. WIFI, Ecompass
2. 75 mm lens, 50 HZ;
3. Long distance;
4. Sensor resolution 640x512, OLED Display 1024x768;

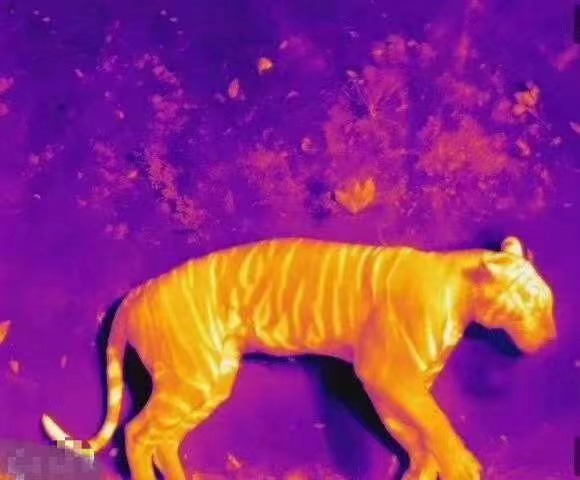

5. Recording;
6. 14 kinds of thermal colors are designed for different surveillance purpose.
Specifications：
Detector type | VOX UFPA |
Resolution | 640x512 |
Pixel size | 12μm |
Frequency | 50Hz |
Response wave band | 7.5~ 13.5μm |
NETD | <35mk @f/1.0 |
Lens | 75mm |
Focal length | 75mm f/1.0 |
Field of view | 5.4°×4. 1° |
Image enhancement | Automatic image filtering and sharpening |
DDE range | 1~32 |
Brightness & contrast | Automatic or manual adjustment |
Image mode | Black/white/color etc.14 kinds |
Reticle | 9 kinds of color |
Magnification | 1x,2x,3x,4x |
Memory | Built in 16G SD card |
Eyepiece | OLED 1024x768 Adjustable FOV |
Rechargeable battery | 14.8V 8800mAh |
Power dissipation | 6W |
Continuous working time | > 6h |
Video | PAL |
USB | Transferring pictures and videos |
Serial port | RS232 ，for commissioning |
Power supply | DC12V 1A |
Working temperature | -40℃ ~ +60℃ |
Storage temperature | -45℃ ~ +65℃ |
Shock | ≤30g |
IP | 66 |
Size | 225mm×183mm×90mm(with eye guard) |
Weight | 1.5kg（ without battery, hand strap ） |
Human Detection | minimum 2000 m |
Human Recognition | minimum 1000 m |
Vehicle Detection | Minimum 4000m |
Vehicle recognition | Minimum 2500m |
