Thermal Binocular

The Multifunctional Thermal Imaging Binocular is used for day and night reconnaissance and target location.

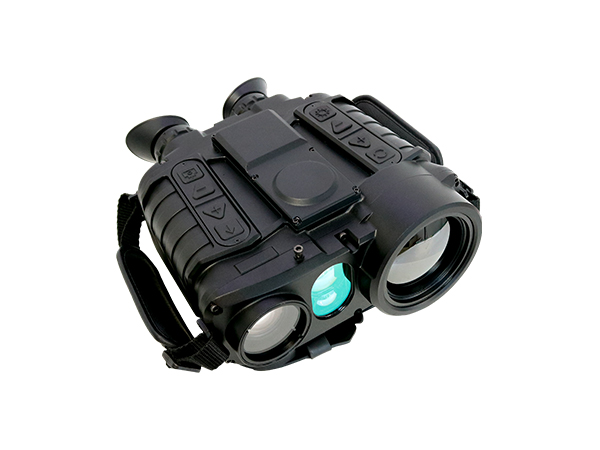

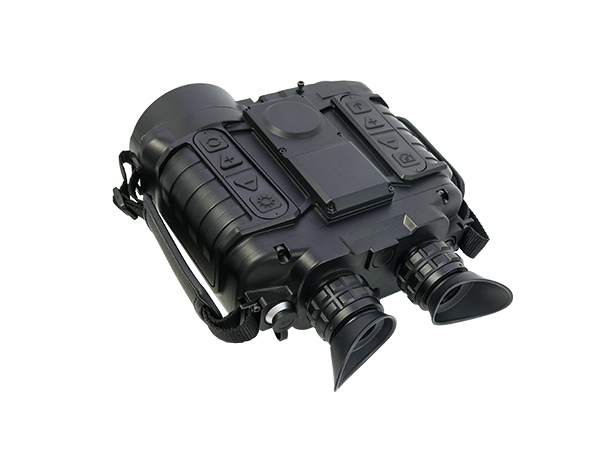

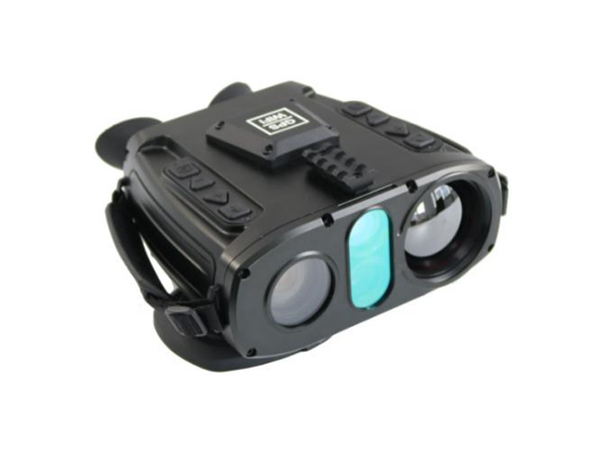

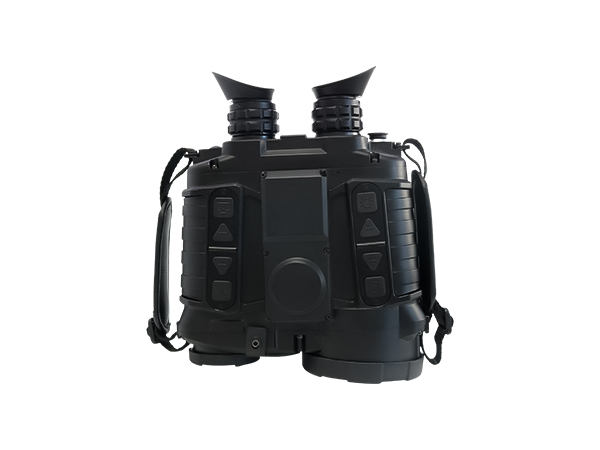

FTB675L Muilti function Thermal Binocular

FTB675L is composed of low light CMOS sensor and IR sensor for day and night surveilance. With 75 mm lens, its FOV can be bigger and observation distance can be longer. CMOS with 1-10 continous zoom can identify the target easily after it is detected. With OLED display and metal housing, it is a military standard thermal binocular for border denfese, law enforcement and other miltary tasks. It is built with the laser range finder and GPS, who can locate the target in long distance. It can be used in all the weather (including fog, smog, rain, snow). It can record (video and picture-taking) the target after it is identified. Therefore, it cann be widely used for patrol, law enforcement, rescue, search of drug dealers and criminals, etc.
Follow:
Description

Features:


CMOS & Thermal;       75mm lens;       WIFI & E-compass;


GPS & Target Coordinates;     640X512 resolution;      Light weight;










Specification:


Low light camera

Low light CMOS sensor

Pitch

6μm×6μm

Magnification

1-10X

Digital zoom

12X

Final magnification

120X

Working wavelength

350~1000nm

Focus length

35mm

FOV

57.5 °(wide); 6.4 ° (Tele)



 IR themal sensor

Uncooled

Pitch

12μm

Focus length

75mm f/1.2 motorized

FOV

9.7°

Resolution

640X512 pixel

Display

0.5Inch, OLED, 1280x1024

Focus

Auto/manual

Imge mode

8 kinds

LRF

02500M

GPS

yes

Stablization

yes

capture

yes

WIFI

yes

Video

yes

Battery

4 pcs of 18650battery

Working hours

≥8小时


                    Diemsension


                                     180mmx178mmx93mm
