Feature:
Cooled 640X512 IR sensor;
Visible light CMOS camera;
GPS for location; LRF for distance;
Light weight and compact, comfort for handheld observation;
Strong Defog ability to meet the marine application;

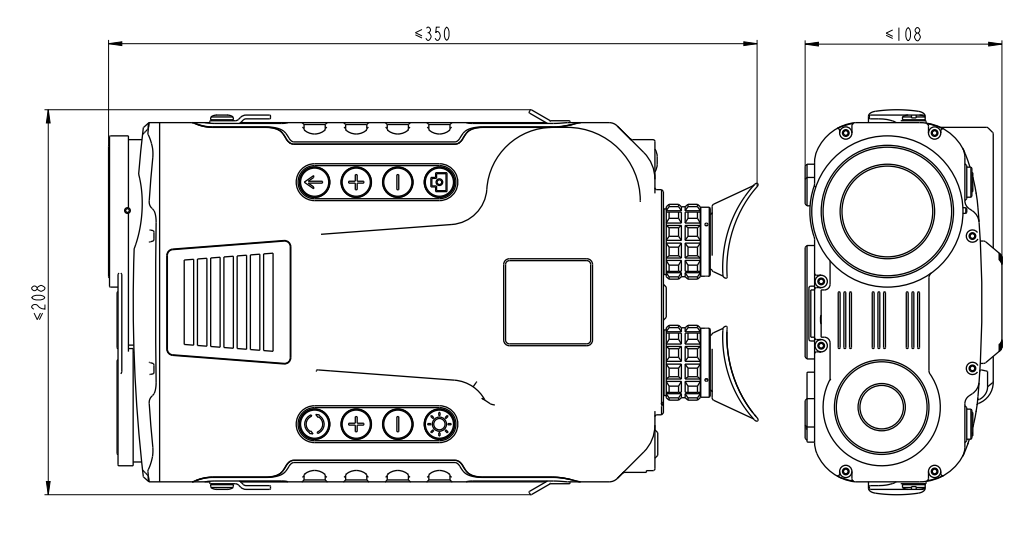

Dimension
Application:
Border security; Coast guard; Day and night surveillance;
Specification:
A.Thermal sensor
| IR sensor | Cooled |
Spectrum range | 3 μm~5 μm |
Pitch | 15um |
Resolution | 640X512 |
Starting time | ≤ 6min@25 ℃ |
Focus length: | 18~275mm |
F# | 5.5 |
Focus | Motorized |
FOV | 29.8 °~ 2° |
Frame rate | 50Hz |
NETD: | ≤ 25mK |
B.CMOS visible light camera
Resolution: | 5MP |
Color Image Pixel | 2.7μm |
Focus Length | 4.3mm~129mm |
Focus | Motorized |
FOV | 63.7x35.8-2.7x1.52 |
Defog | Color / black and white |
C. Laser range finder
Wave length: | 1,535 nm |
Range | 80m~12Km (visibility 12km, medium vehicle side as the target) |
Accuracy: | ± 1m |
Repeated frequency | ≥ 10Hz |
Precision | ≥ 98% |
D. E-compass
Azimuth: | 0 ° ~360° |
Pitch angle: | -90° ~90 ° |
Roll scale | -180° ~180 ° |
Repeat frequency | ≥ 0.5Hz |
Repeated | 0.05 ° (RMS) |
E. Beidou GPS
Frequency: | 1559~1577MHz RF |
Wave ratio: | ≤ 1.5 |
Antenna gain | 15~30dB |
Accuracy | 2.5m CEP |
F. Storage
Storage : | 64GB |
Video Format: | AVI |
Image format | BMP |
Video time | ≥4h |
Picture | ≥1000 original pictures |
G. OLED and battery
Resolution of OLED : | 1280×1024 |
Dioptor adjustment | ±4° |
Battery | 8 pieces of 18650 |
Working time | ≥4h in normal temperature |
H. Physical and interface
Weight : | 3kg |
Weight of whole package | ≤6Kg |
Water proof | Ip67 |
Working temperature | -40℃~+55℃ |
Storage temperature | -55℃~+70℃ |
Video | PAL |
Data | USB |
Communication | RS232 |
Shock proof | Yes |
MTBF | ≥8000 hours |
MNBF | MNBF： ≥1 000 |
Dimension | ≤ 108mm X 208mm X 350mm |
I. Distance:
Detection Vehicle ≈2,3x2,3 m | 10KM |
Recognition Vehicle ≈2,3x2,3 m | 7.2KM |
Identification Vehicle ≈2,3x2,3 m | 3.6KM |
Detection human ≈1,70x0,8 m | 8.6KM |
Recognition human ≈1,70x0,8 m | 3.4km |
Identification human ≈1,70x0,8 m | 2KM |
