Thermographic imager

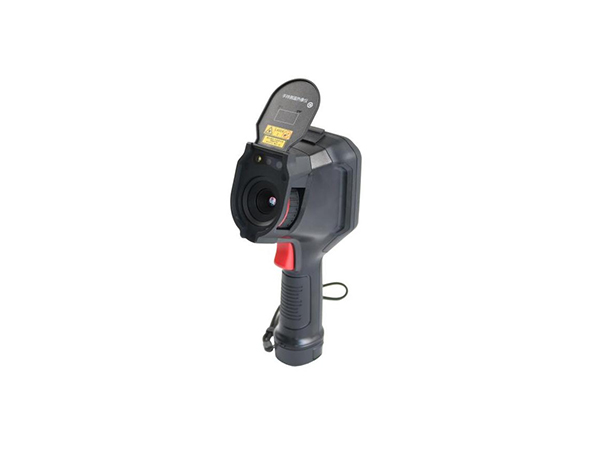

DLF800IRC Thermographic IR Camera

Designed to be in 4 modes: thermal, fusion, visible light, picture in picture. By thermal mode, the people behind the fog can be searched and rescued; By Fusion, more details or relative location of the human behind the fire can be shown; the picture taken under the visible light will more easily capture these exit, fire hydrants in fire disaster and other objects which the thermal cannot detect; By picture in picture, more information can be shown at the same time for quick judgement and decision in rescue.

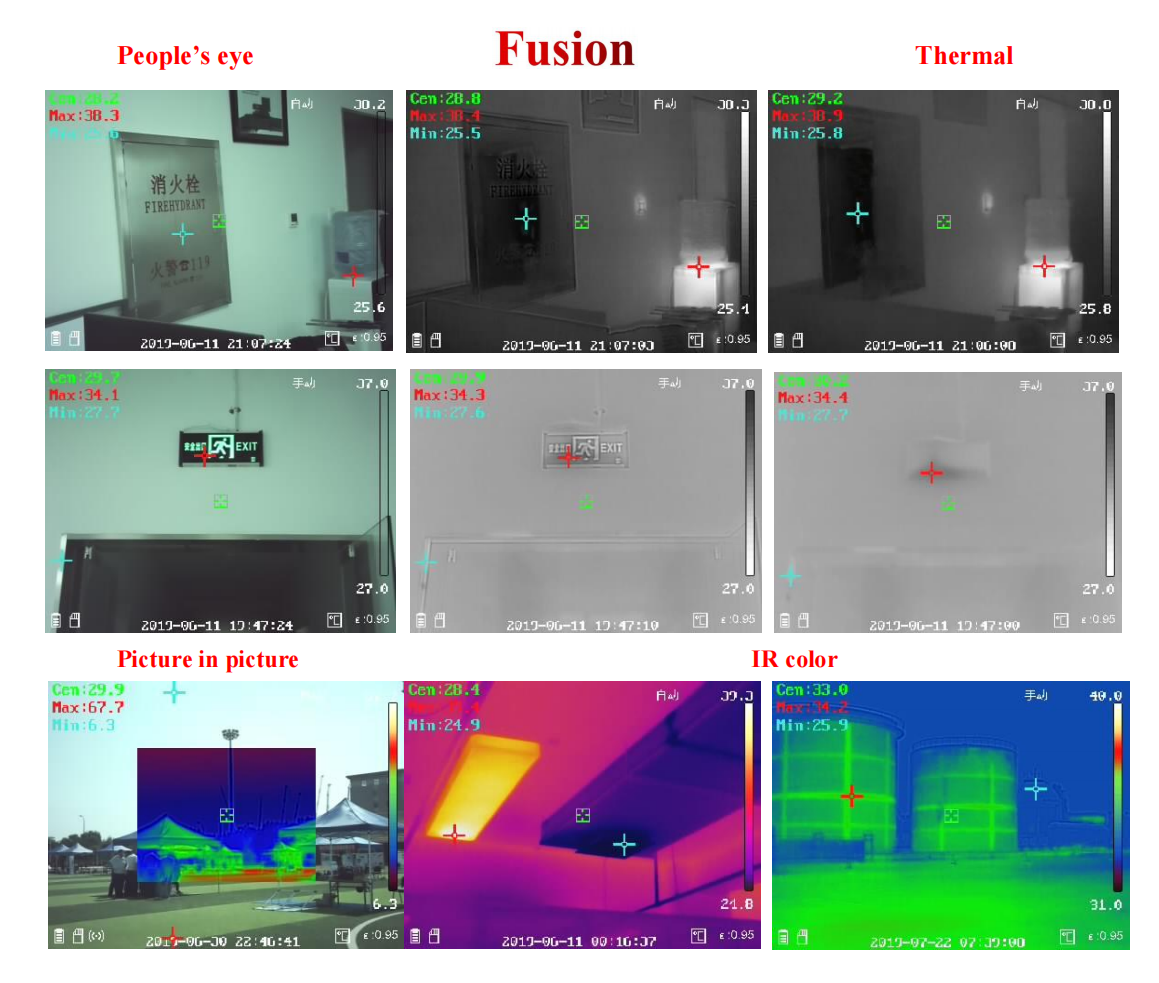

1. 4 modes: thermal, fusion, visible light, picture in picture;

2. In thermal mode, there are 21 kinds of IR color (white hot, black hot, red hot, iron red, green hot, etc) for different surroundings;

3. Warning of the preset temperature ( max, min, interval);

4. Touch screen;

5. Automatic or manual adjustment of contrast;

6. laser pointer to indicate the location of the human behind the fire;

7. Temperature measured range is -20℃--+550℃

8. Two options for temperature: -20℃--+150℃ and +100℃-+550℃;

9. Emissivity: 0.01-1.00; quick selection for human skin, cable,cement or concrete, pottery, painting,rubber, woods, soil, sand, bricks, papers, etc;

10. Measure the temperature distance: 0-999 meters;

11. Measure the temperature of the target in FRAME which can be set by touching the screen; there can be max, min and average temperature in the frame;

12. Measure the temperature of the target by LINE which can be set by the touching screen, there can be max, min and average temperature in the line;

13. Auto tracking the max and min temperature and show them on the left;

14. Set the point for measuring the temperature and 10 points can be set at the same time;

15. All these temperature can be deleted quickly by touch;

16. The picture can be edited, texted manually in the device;

17. Distance of fusion can be preset: 1m, 2m, 4m, >5m;

18. The ratio of the picture in picture can be % 35-70%;

19. The sound warning can be switched on or off;

20. CVBS out put;

21. The trigger behind can work as the button for taking picture or recording the video;

22. The flashlight can be switched on when taking the picture;

23. High, medium, low brightness adjustment;

24. Degree centigrade, Fahrenheit degree, Kelvin;

25. Inch and meters can be selected;

26. Time and date can be set;

27. Built-in illuminator in visible light;

28. Automatic switching off in preset time: 10/20/30/40/50/60 minutes;

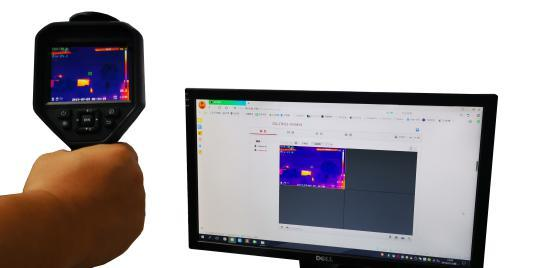

29. WIFI for connecting the other smart devices (APP) and it can work as the 4G tansmiter to connect with other computer (phone) for real time transmission;

31. Bluetooth for transferring the sound document to other device;

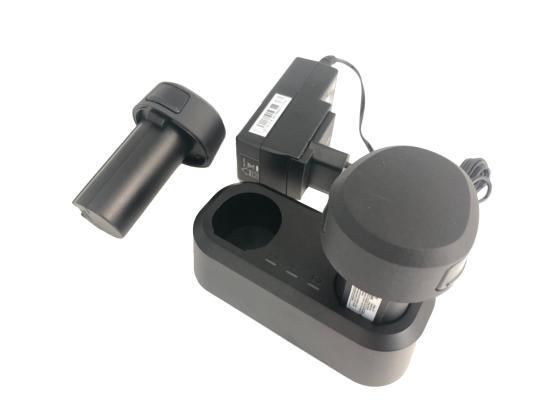

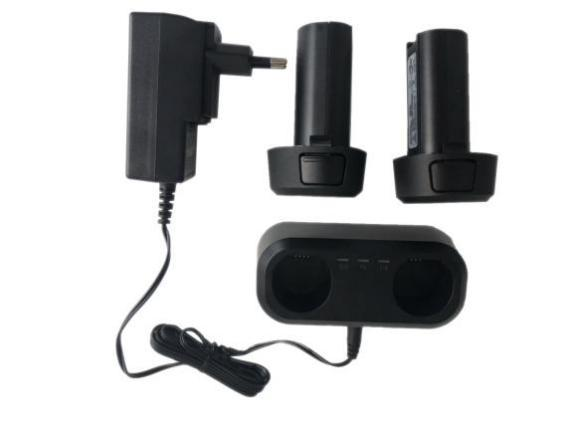

Picture of rechargeable Battery:
