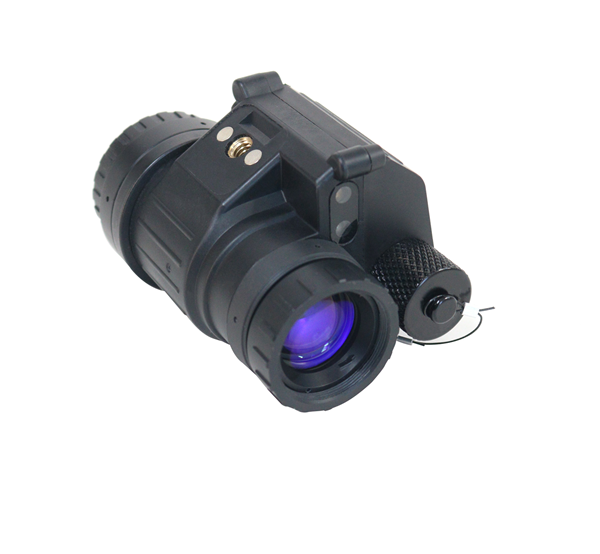

PVS-14 Night Vision Monocular

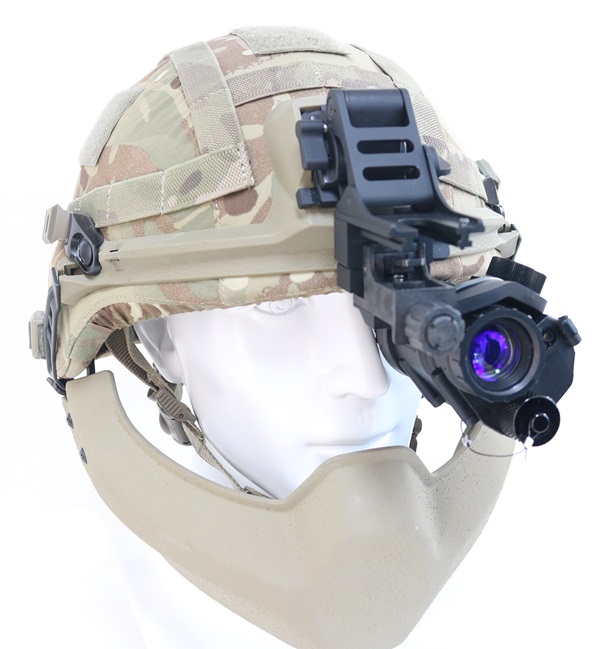

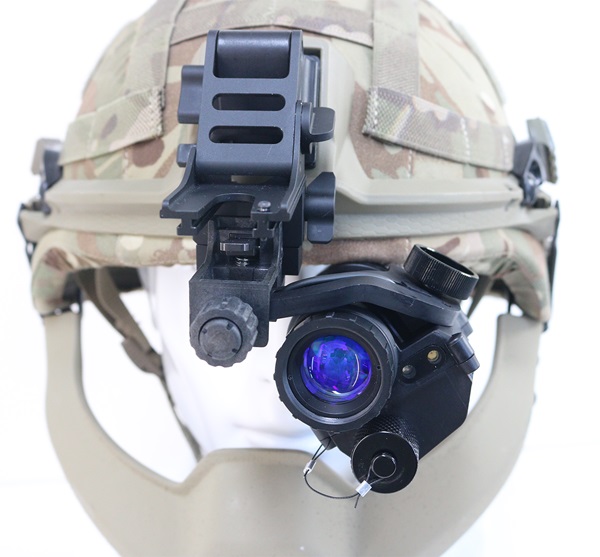

The PVS-14 is the all around best multi functional night vision monocular available. Head or helmet mounted, the PVS-14 allows the user to retain their night adapted vision in one eye while viewing their surroundings through the illuminated eyepiece of the PVS-14. Gain control gives the user the ability to increase or decrease the tube gain. Under extremely dark conditions, gain control allows the user to adjust the gain upward, giving a better image. Under high light conditions, details can be washed out due to an excess of light. Lowering the system gain can allow those details to be better seen. Additional features of the PVS-14 include an infrared LED with LED indicator and a low battery indicator.
Follow:
Description







        Specification:


IIT

Gen 3(Auto gate)

Resolution

64-72lp/mm

FOM

1400-2000

Brightness gain

Manual

Magnification

1X

FOV

41°

Diopter adjustment

+2~-6

Objective lens

F/1.2

Eyepiece

EFL 26mm

Focus length

0.25m-infinity

Power

1.2V-1.5V

Battery

AA battery(1 pc)

Working time

50hours@25℃

Weight

320g(with battery)

Dimension

105mmx63mmx68mm

Working temperature

-51℃~49℃

Storage temperature

-51℃~85℃

Protection

IP67
