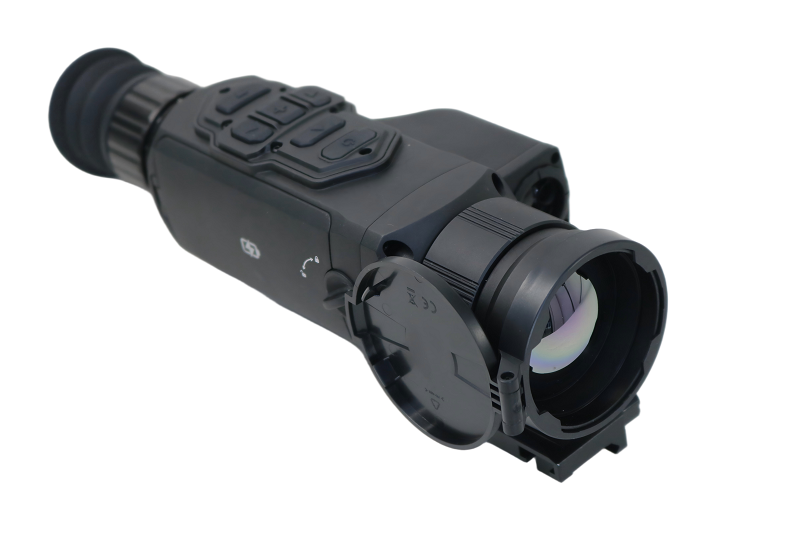

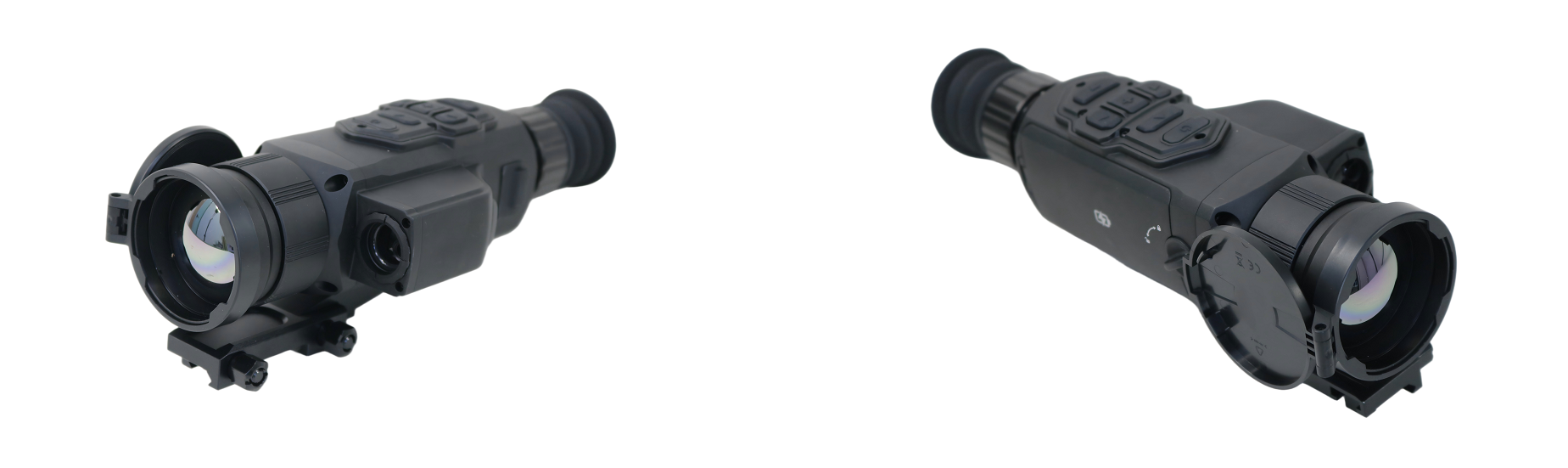

M7L Thermal scope
Specification
Product model | M7L | |
Sensor | ||
Type | Vox | Vox |
Resolution | 384 X 288 | 640 X 512 |
Pixel size | 12μm | 12μm |
Working band | 8~14μm | 8~14μm |
NETD | ≤30mk @25°C,F#1.0 | ≤40mk @25°C,F#1.0 |
Frame rate | 50Hz | 50HZ |
Objective lens | ||
Focus mode | Manual | Manual |
Lens | 35mm | 50mm |
Field angle | 7.5° X 5.7° | 8.8° X 7.0° |
Magnification | 3.3 | 2.8 |
Close-up range | 1m-∞ | 5m-∞ |
Detection distance | Human:3300m Vehicles:8750m | Human:4722m Vehicles:12500m |
Identification distance | Human:826m Vehicles:2188m | Human:1180m Vehicles:3125m |
LRF | ||
Laser rangefinder | LRF 10m~1200m(905nm) | |
Eyepiece | ||
Eye relief | 18mm | |
Dioptre adjustment | -5D~+5D | |
Display | ||
Type | OLED | |
Resolution | 1024×768 | |
Size | 0.39 inch |
