Laser Rangefinder

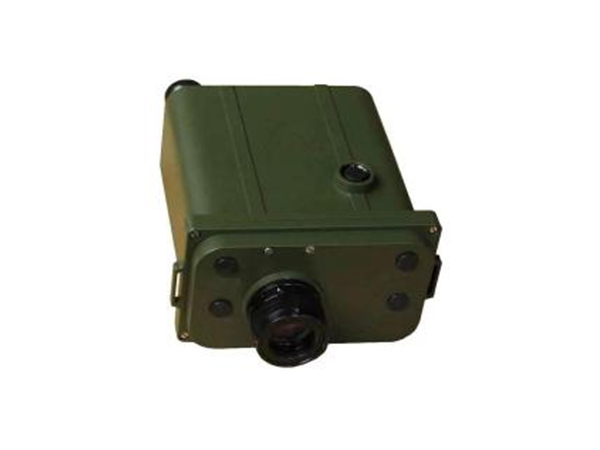

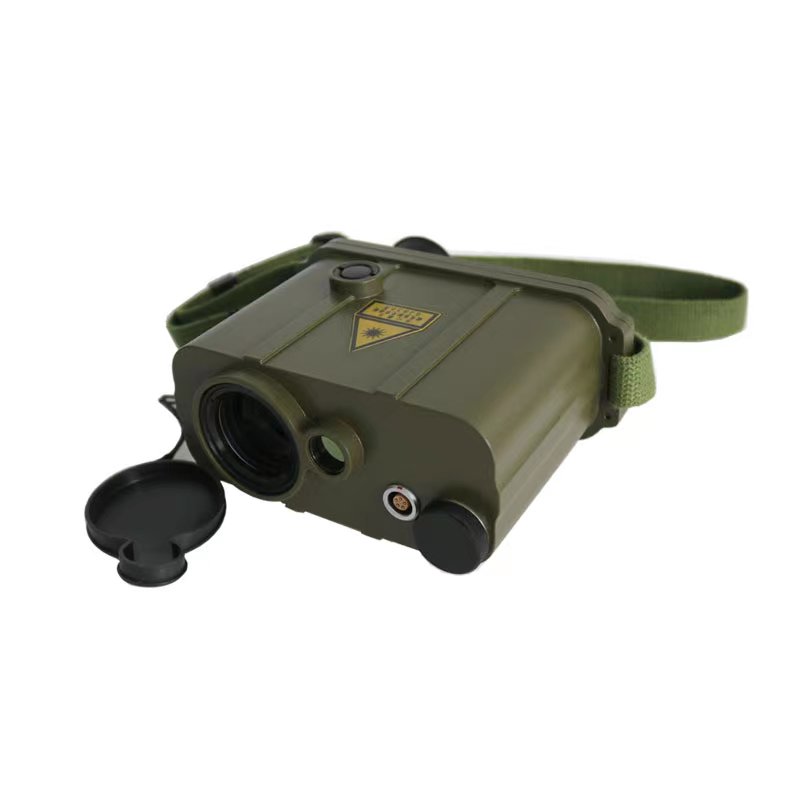

2KV C hand held laser range finder

The range can be up to 10KM. Distance, angle and height can be measured.
Follow:
Description

Feature:

Nd:YAG laser,wave length 1.064 micron; Valid ranging can be up to 10000

meters; Measure accuracy: 1 meter;

One laser can measure two targets;

Passing light with different wave can be selected;

Illuminated reticles at night;

The data of 10 targets can be stored for checking;

Record of the laser working times;

RS232 interface;

Water proof, shock proof;

Working temperature: -40℃~+50℃


Specification:

Finding Range : 80 meter- 10000 meter

Distance accuracy: ±1m

Distance resolution: smaller than 30 meters

Repeated frequency: 6 times / minutes; Emergency: 12 times/minute

Measurement tolerance: <0.1%

Magnification :7X

Angle of view:7degree(Horizontal)

Exit Pupil:6mm

Eye relief:20mm

Resolution:8 seconds

Battery type: 2 units of chargeable 16340 (700 mAh); can find the range 800 times with full battery capacity. It can find the range 20 times in low battery.

RS232 or RS422 interface

Working temperature: -40~+50℃

Humidity: 95~98%

Waterproof and shock proof

Dimension: 202×149×88 mm

Weight: 1.4 kg
