Night Vision

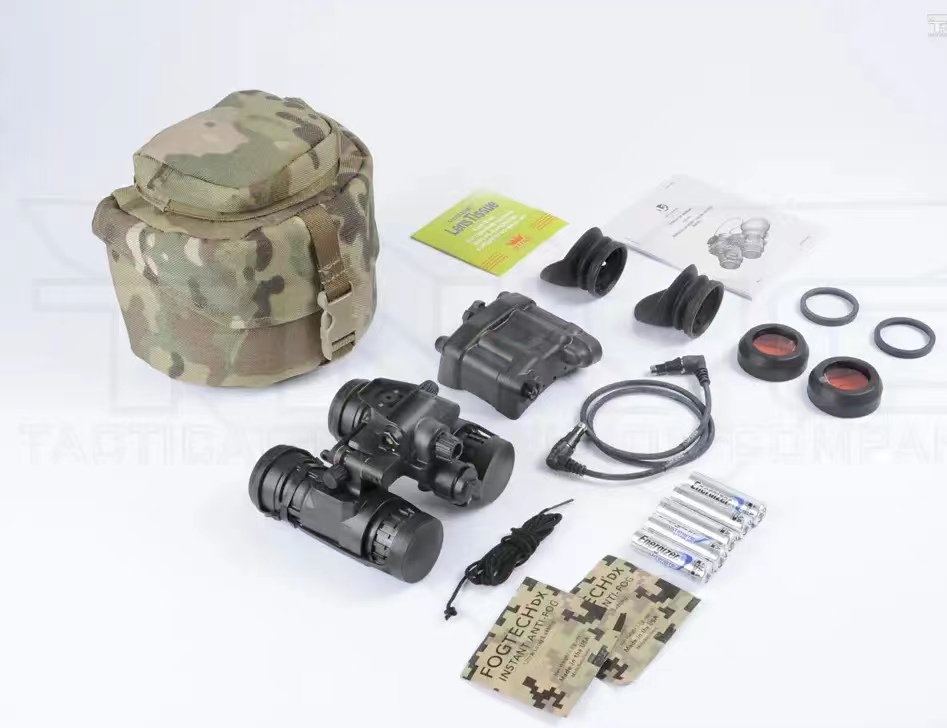

PVS31C Night Vision Binocular

Assmbeled with Nylong housing and the advanaced Gen 3 tube, PVS31C can be on a par with USA AN/PVS31 night vision. It is light weight, compact, helmet mounted. Monocular on left or right can flip up or down at 140°, automatically turned off when flipped up,automatically turned on when fipped down. When fliping it by side, it cannot slip down with its damping system. It is the best choice for night battle. Its advantage over USA AN/PVS31 night visioni is that its diopter can be adjusted to fit different eyesight of different soldiers.

 It can be assembled with green or white phosperous tube:





Rugged Nylon housing, can be mounted on the helmet

Rear battery pack for balance.

Gen 2 or Gen 3 ITT can be installed.

At visibility 5km, illumination  0.001lx, its detection distance of human (1.7mX0.5m) can be 250-350 meters.

Resolving powercenter illumination1.05x10-1lxcontrast86%

Illumination souce  color temperature2865K

Focal length of paralell light tube2000 MRAD: 0.70

Resolution 60-68 lp/m

 Luminance Gain center illuminatino1.05x10-1lxContrast 86%

Illumination souce  color temperature:2865KFocal length of paralell light tube2000   luminous sensitivity: 850-2100uA·1m-1

Signal to noise23-28

FOV40 or 51°

Diopter adjustment -5.5~+5.0D

Weight494g mount and battery are not included

Dimension103.2mm(L) x97.2mm(W) x 82mm(H)

Battery CR123Aor AA

Working time with full charged battery, ≥ 50h

Reliability10000 hours

Objective lens26mm

Interpupillary distance: adjustable

Flip degree of -left-right monocular50-130


Bright light-offyes


High temperature 60±2℃  working normally 2 hours

Low temperature -40±2℃working normally 2 hours


Interfacestandard WILCOX, one button to dispatch the PVS31C
