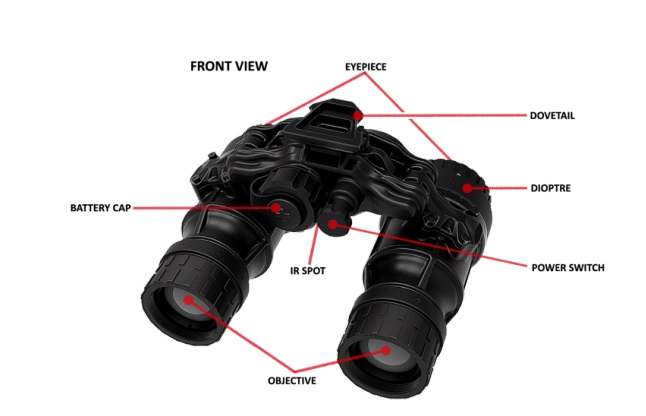

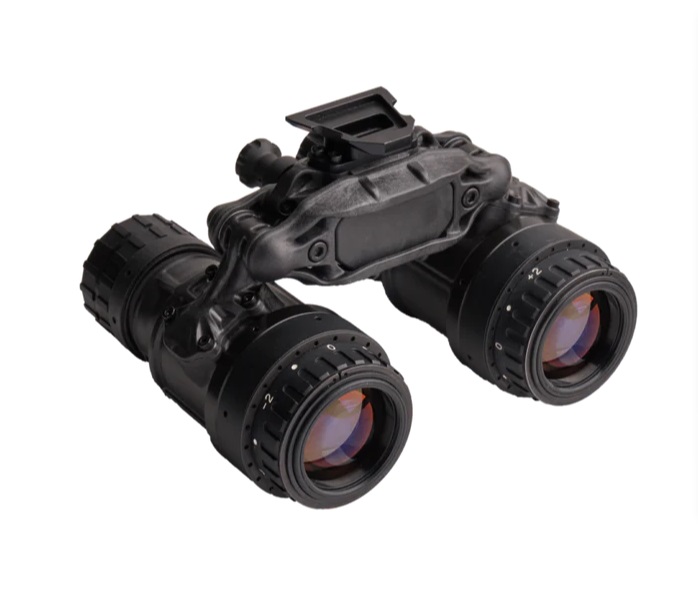

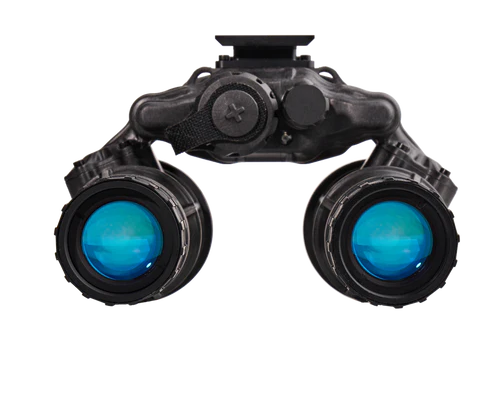

DTNVS33 Night vision binocular

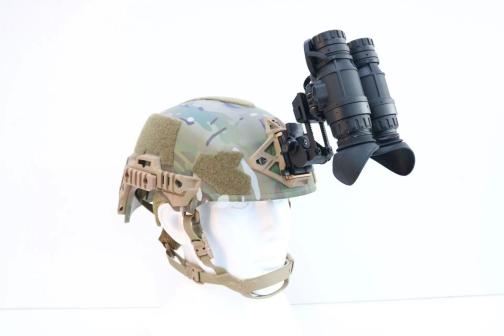

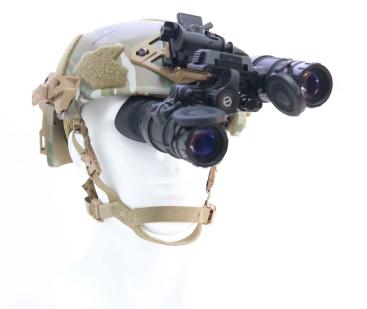

Helmet mount

included

Rear battery pack

optional

Tube

Gen 2+ , Gen 3

Distance

At visibility 5km, illumination 0.001lx, its

detection distance of human (1.7mX0.5m) can be 100- 250 meters.

Resolution

50-72 lp/mm

Signal to noise

28

Sensitivity

800-2000

FOV

40-51°

Diopter adjustment

±5°

Weight：

≤553g （mount and battery are not included）

Dimension

73.5mm(L) x102mm(W) x 108mm(H)

Battery

CR123A

Working time：

with full charged battery, ≥ 50h

MTTF

1000 hours

Working time：

50 hours (with fully charged battery)

Objective lens：

26mm

Interpupillary distance

adjustable

Flip degree of -left-right

monocular：

50-140

Bright light-off：

yes

Gain

Auto gain

High temperature：

60±2℃， working normally 2 hours

Low temperature：

-40±2℃，working normally 2 hours

Protection

IP66

Interface：

Standard WILCOX, one button to dispatch the PVS31C
